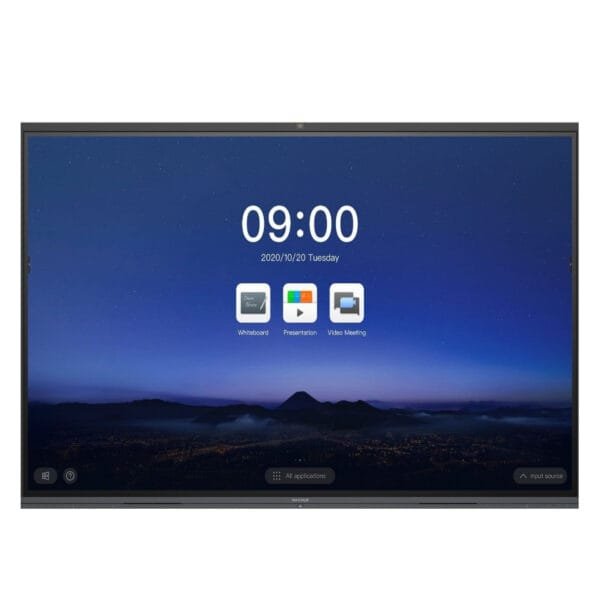

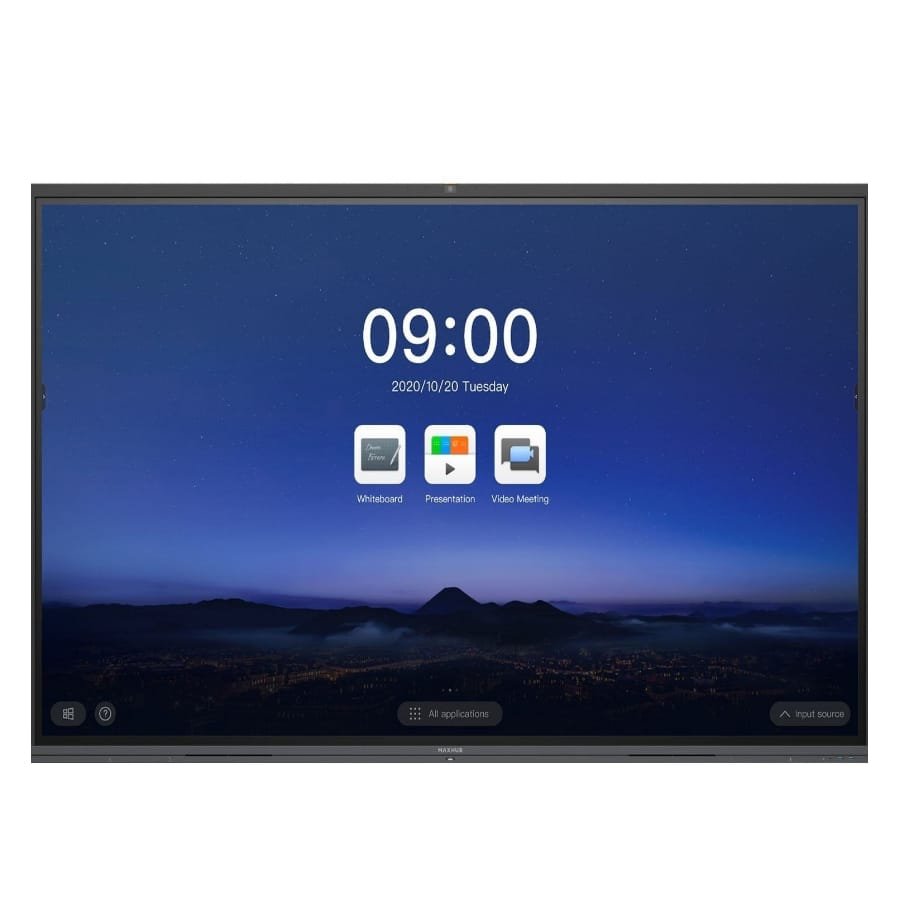

MaxHub C8630 86″ 4K LED V6 Classic Interactive Flat Panel Display

1 in stock (can be backordered)

  • Panel Technology: VA

  • Aspect Ratio: 16:9

  • Brightness: 350 cd/m²

  • Contrast Ratio: 4000:1

  • Viewing Angle: 178° horizontal and vertical

  • Response Time: 8ms

  • Refresh Rate: 60Hz

  • Operating Hours: 16/7

  • Mounting: VESA-compatible (800 x 600 mm)

  • Included Accessories: Power cord, Wi-Fi adapter, 2 passive styluses, wall mount, and a 1.8m Type-C cable.

View List
Talk to Experts
SKU: NT-MX- C8630 Categories: , Brand:

The MAXHUB C8630 is an 86-inch 4K UHD interactive flat panel from the V6 Classic Series, designed to enhance collaboration in corporate and educational environments. With its high-resolution display, responsive touch capabilities, and integrated conferencing features, it serves as a comprehensive solution for modern meeting spaces.

  • Display: 86″ 4K UHD (3840 x 2160) Direct-lit LED with 90% NTSC color gamut and ΔE≤2 color accuracy, ensuring vibrant and precise visuals.

  • Touch Capability: 20-point multi-touch with minimum object recognition of 2mm, allowing multiple users to interact simultaneously.

  • Camera: Built-in 48MP camera with a 92° horizontal field of view (HFOV) and WDR (Wide Dynamic Range) technology for clear imaging in various lighting conditions.Audio: Integrated 2.1 channel stereo sound system comprising 2 x 10W speakers and a 20W subwoofer, delivering clear and powerful audio.

  • Microphones: 8-element microphone array with AI noise reduction, supporting voice pickup up to 8 meters, ensuring clear communication during meetings.Wireless Screen Sharing: Supports multiple protocols including MAXHUB Share, Miracast, AirPlay, and Chromecast, enabling seamless content sharing from various devices.

  • Smart Whiteboard: MAXHUB C8630 Features OCR (Optical Character Recognition) support and multiple built-in templates, facilitating efficient brainstorming and note-taking.Operating System: Runs on MAXHUB OS 6.0, providing easy access to whiteboarding, video conferencing apps, and wireless projection.Connectivity: Equipped with a front-facing Type-C interface, HDMI, USB ports, and supports optional Wi-Fi modules for versatile connectivity options.

  • Design: MAXHUB C8630 features a sleek design with antibacterial glass and styluses, promoting hygiene in shared environments.

Additional information

Display

Diagonal Size (inch): 86
Glass: Anti-glare, Tempered
Panel Technology : VA
Viewing Angle: 178°(H/V)
Aspect Ratio: 16:9
Blacklight: DLED
Resolution: 3840 x 2160

Interactivity

Interactivity: Infrared (IR)
Touch Sensor: Finger, Gesture, Stylus
Touch Tool: Up to 20 touch points (OS dependent)
Stylus Type: Windows10/8/7/XP, Android, Linux, Mac OS X, Chrome OS
Supported Operating System (Touch Return): Chrome OS

Speaker

Sound Channel: 2.1
2 x 10 W + 20 W

Dimension

Size : 211 cm x 128.3 cm x 22.5 cm
Weight : 59.75 Kg

Connectivity

HDMI In x1, USB 2.0 x1, USB 3.0 x2, TOUCH 2.0 x1, USB Type-C x2
Audio Out x1
RS232 x1
